Welded Cylinders

Welded cylinders, a cornerstone of hydraulic engineering, exemplify durability, efficiency, and versatility in various applications. These cylinders, expertly crafted through precision welding techniques, play a crucial role in powering machinery across industries. From heavy-duty construction equipment to agricultural machinery, the reliability of welded cylinders is unmatched.

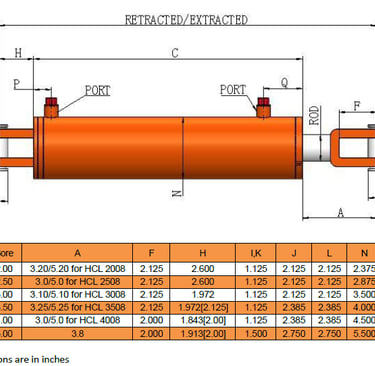

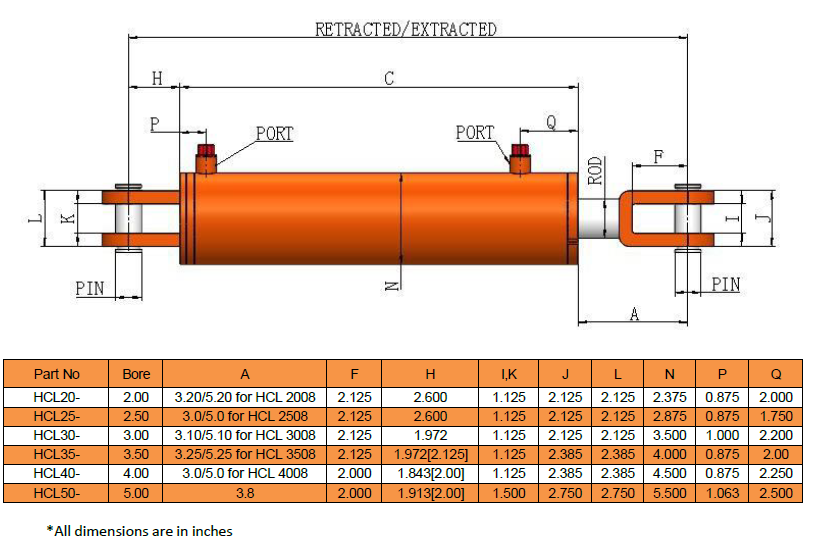

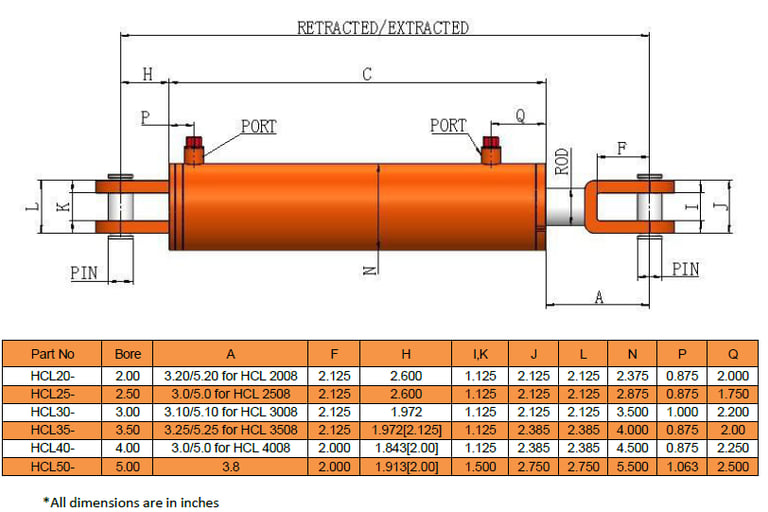

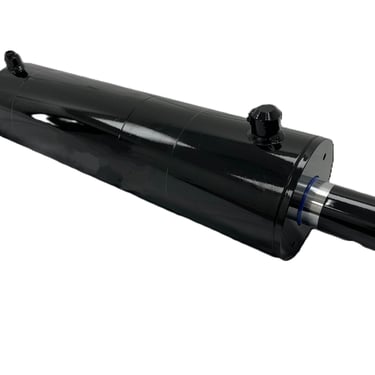

3000 PSI HCL Cylinders

• ROD: Steel, induction hardened to 45-50 Rockwell C and chrome plated 0.001” thick for a final surface hardness 69-71 Rockwell C. ASTM B117-07a salt spray testing 96 hours.

• PISTON: Ductile iron, for increased durability.

• TUBE: Steel, honed and precision finished.

• PORTS: Standard SAE(NPT available upon request).

• CONSTRUCTION: Heavy duty welded construction.

• GLAND: Thread.

• PIN: Steel, zinc plated.

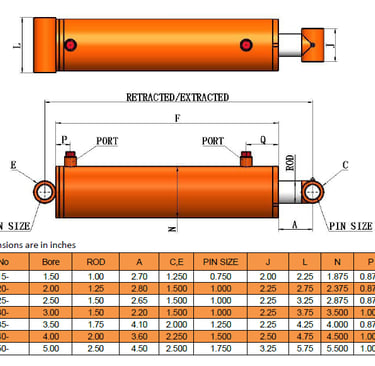

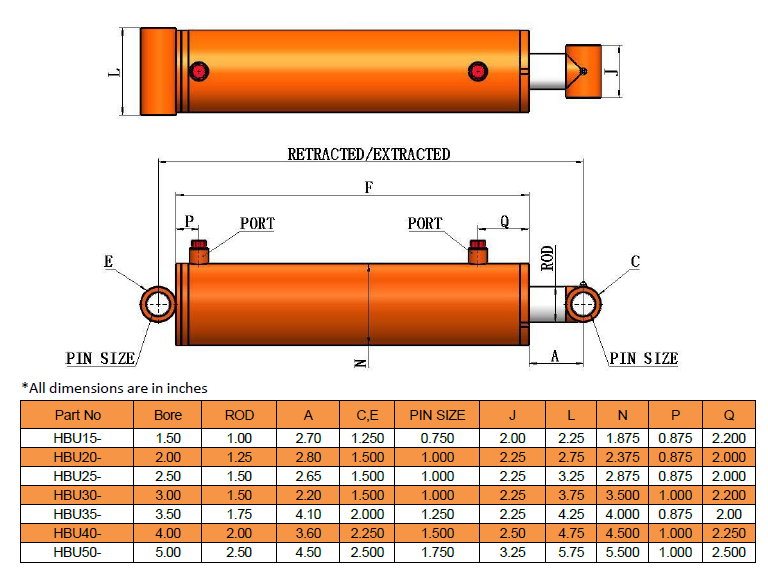

3000 PSI HBU Cylinders

• ROD: Steel, induction hardened to 45-50 Rockwell C and chrome plated 0.001” thick for a final surface hardness 69-71 Rockwell C. ASTM B117-07a salt spray testing 96 hours.

• PISTON: Ductile iron, for increased durability.

• TUBE: Steel, honed and precision finished.

• PORTS: Standard SAE(NPT available upon request).

• CONSTRUCTION: Heavy duty welded construction.

• GLAND: Thread.

• PIN: Steel, zinc plated.
