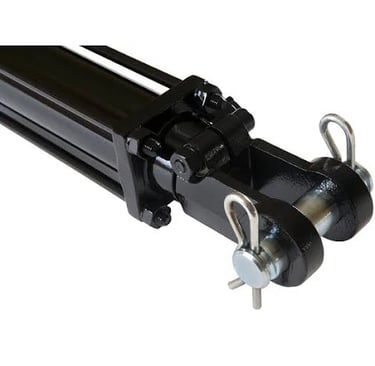

Tie Rod Cylinders

In the dynamic landscape of hydraulic engineering, tie rod cylinders emerge as a fundamental force, embodying efficiency, versatility, and durability. These cylinders, characterized by their distinctive tie rod construction, play a pivotal role in a myriad of industrial applications. From manufacturing machinery to heavy construction equipment, tie rod cylinders are the unsung heroes that facilitate precise and powerful movements within hydraulic systems.

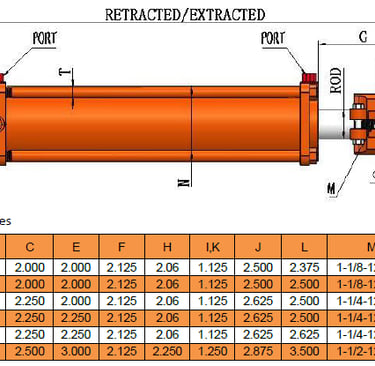

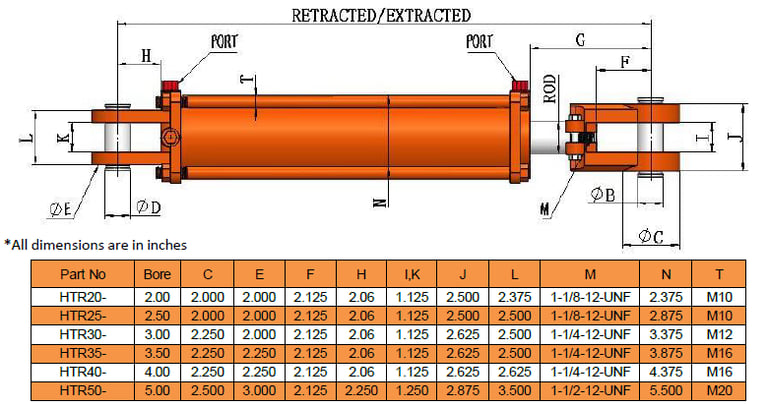

2500 PSI HTR Cylinders

• ROD: Steel, superior and hard, chrome plated 0.001” thick for a final surface hardness 69-71 Rockwell C.

• PISTON: Ductile iron, for increased durability.

• TUBE: Steel, honed and precision finished for extended seal life.

• STEEL TIE-ROD: High tensile strength to prevent stretching.

• PORTS: Standard SAE.(NPT available upon request).

• END CAP: With 2 ports 90 ° to each other for greater flexibility of assembly.

• ATTACHMENT: Ductile iron, threaded female clevis, adjustable with locking bolt.

• PIN: Steel, zinc plated.

• SEALS: Top quality seals .

• PAINT: High quality paint for corrosion resistance(standard color: black) .

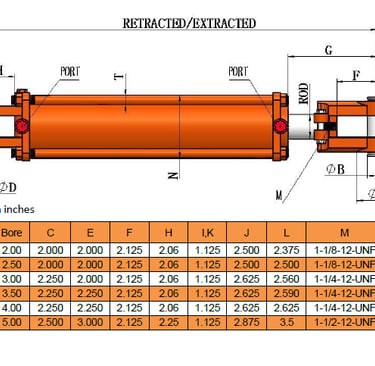

3000 PSI HTH Cylinders

• ROD: Steel, induction hardened to 45-50 Rockwell C and chrome plated 0.001” thick for a final surface hardness 69-71 Rockwell C. ASTM B117-07a salt spray testing up to 96 hours.

• PISTON: Ductile iron, for increased durability.

• TUBE: Steel, honed and precision finished for extended seal life.

• STEEL TIE-ROD: High tensile strength to prevent stretching.

• PORTS: Standard SAE.(NPT available upon request). E

• ND CAP: With 2 ports at 90 ° to each other for greater flexibility of assembly.

• ATTACHMENT: Ductile iron,threaded female clevis, adjustable with locking bolt.

• PIN: Steel,zinc plated.

• PAINT: High quality paint for corrosion resistance up to 360 hours (standard color: black) .
