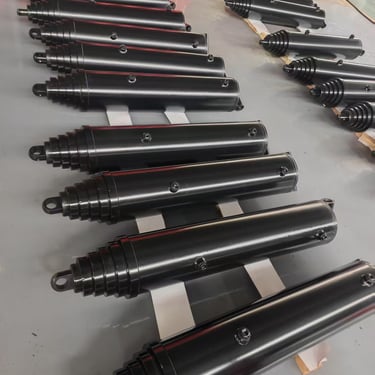

Telescopic Cylinders

Telescopic cylinder hydraulic systems use multiple nested cylinders to achieve extended reach and increased lifting power. This design allows for a more compact installation, making telescopic cylinder systems a suitable choice for dump trucks with limited space. The telescopic configuration enables greater stroke lengths, enhancing the dumping angle and overall efficiency.

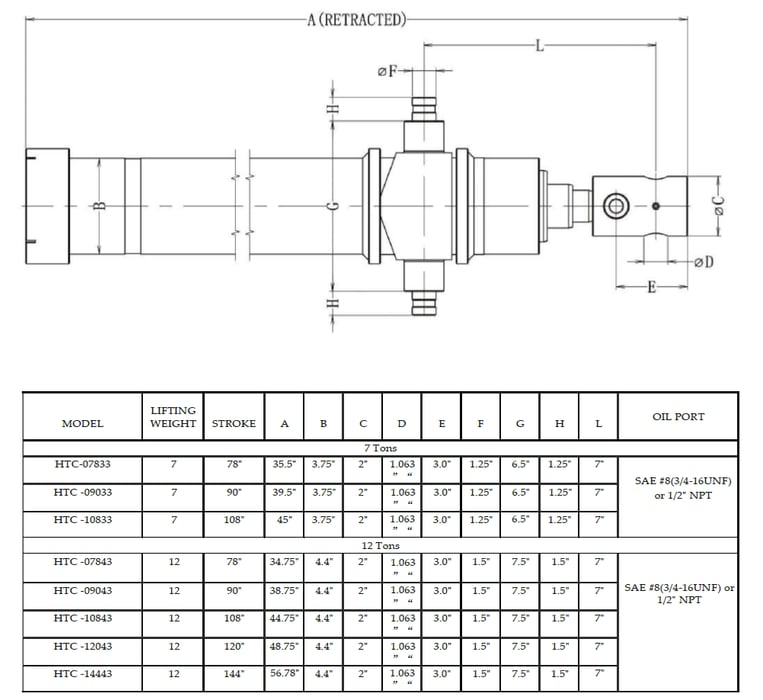

HTC Series Telescopic Cylinders

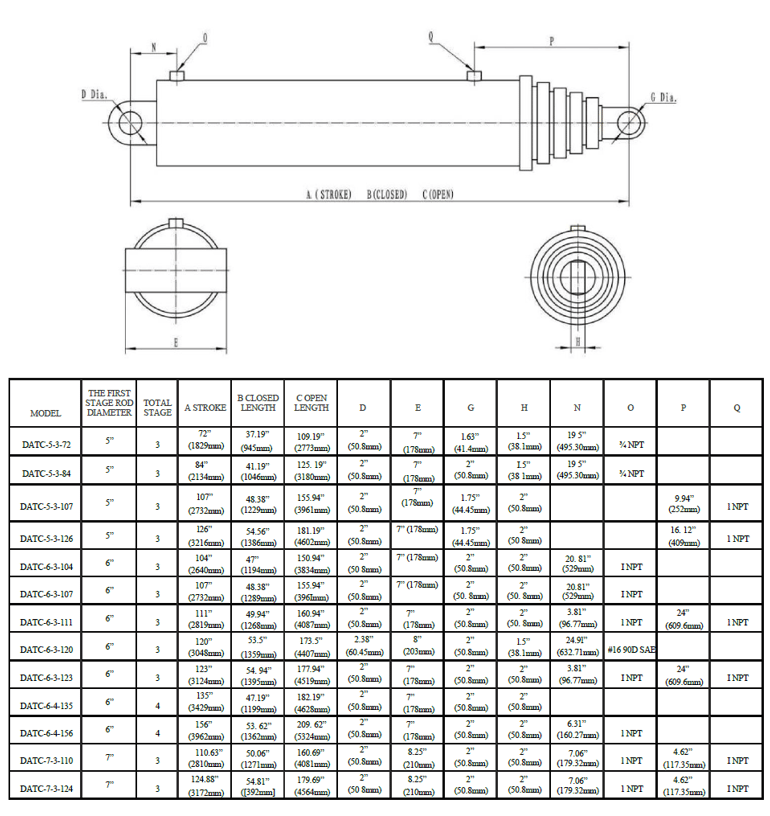

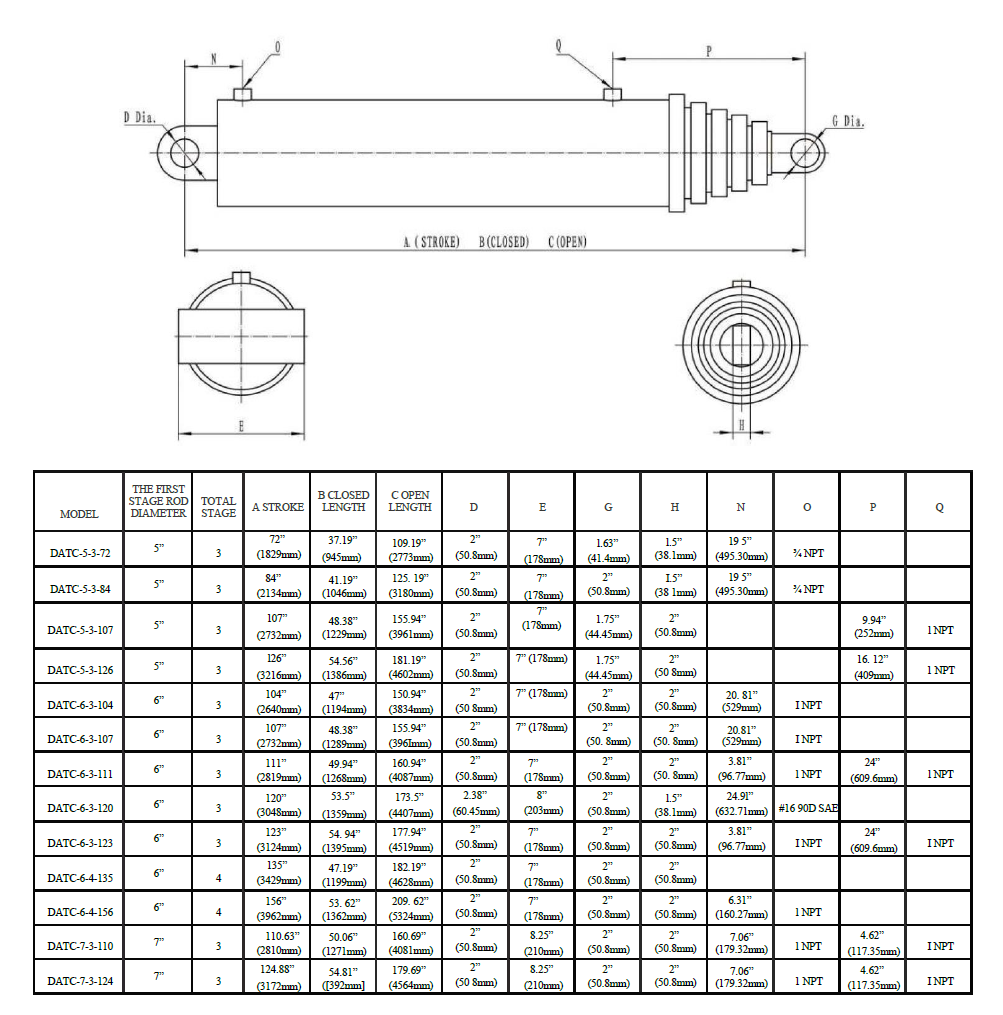

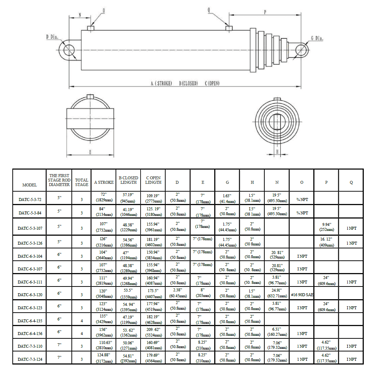

Double Acting Telescopic Cylinders

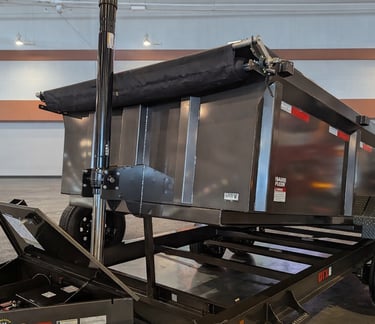

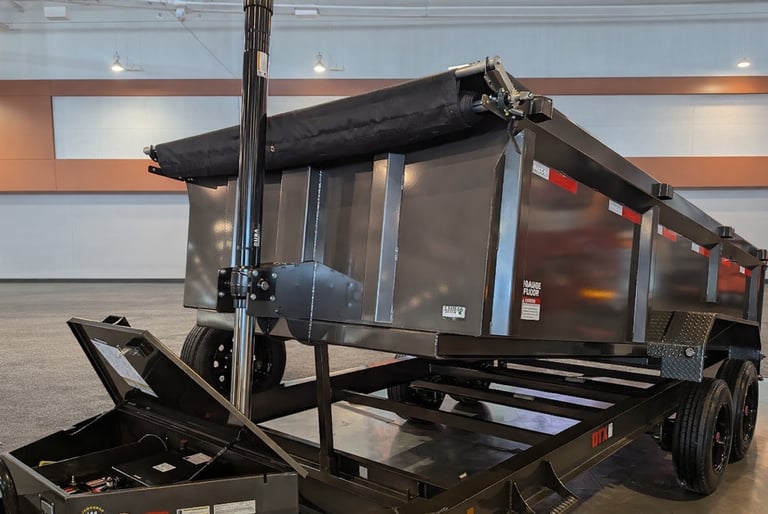

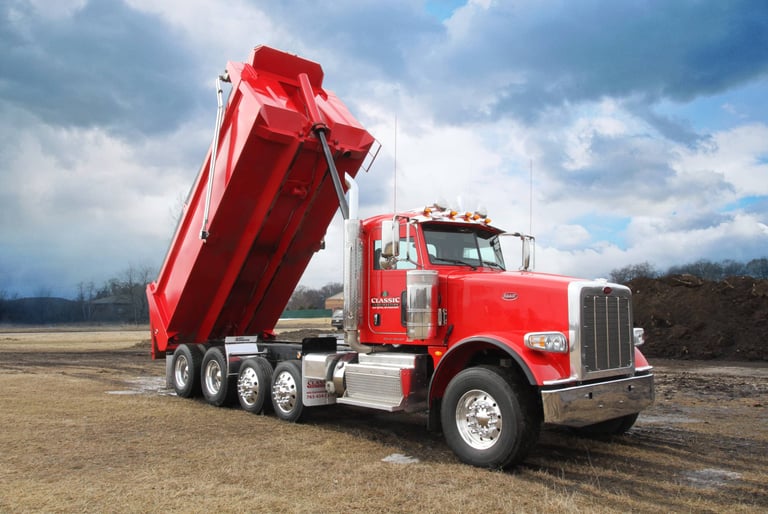

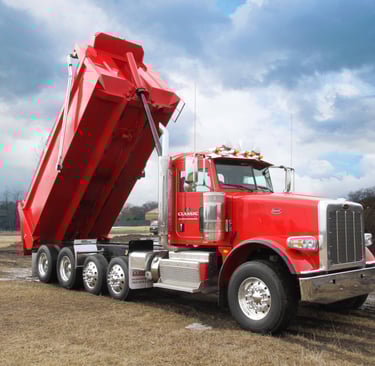

Telescopic hydraulic cylinders are critical components in the dump trailer, dump truck, and refuse truck industries, where powerful lifting capability and compact design are essential. These cylinders feature multiple nested stages that extend in sequence, allowing for a long stroke while maintaining a short retracted length—ideal for vehicles with limited mounting space. In dump trailers and dump trucks, telescopic cylinders provide the force needed to raise heavy beds and unload materials efficiently. Similarly, in refuse trucks, they enable smooth lifting and compacting operations. Popular model series commonly used in these applications include the HTC, DC, and FC/FE series, known for their reliability, rebuildable construction, and high working pressure. Their durability and high lifting capacity make them the preferred choice for heavy-duty, high-cycle operations in these demanding industries.

Other Series Telescopic Cylinders

The FE, TG, and other heavy-duty series of telescopic hydraulic cylinders are specifically engineered for demanding applications such as dump trucks, off-road haulers, refuse vehicles, and construction equipment. The FE series typically refers to front-end mounted, single-acting telescopic cylinders, widely used in European-style dump trucks for their compact design, high lifting capacity, and integrated oil reservoir options. The TG series is known for trunnion-mounted configurations, offering increased stability and strength, making them ideal for high-load, rear-end dump applications.
